SCANDVIK
SCANDVIK ABA Original 316 SS Hose Clamp
SKU: 560-13014
$3.97

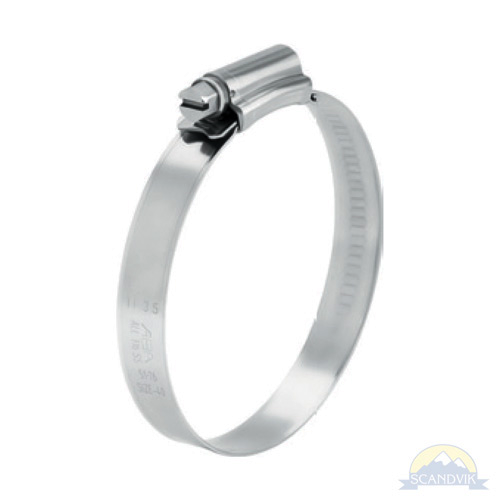

SCANDVIK ABA Original 316 SS Hose Clamp
ABA 316 stainless steel clamps are the perfect choice for applications where premium corrosion resistance is required. All parts are made of 316 stainless steel.
| SAE Size | Clamping Range | Band Width | Tightening Torque | |
| Inches | mm | mm | Inch - Lbs. | |
| 3 | 5/16 - 9/16 | 14-Aug | 9 | 20 - 35 |
| 4 | 7/16 - 11/16 | 17-Nov | ||
| 6 | 1/2 - 13/16 | 13 - 20 | ||
| 8 | 5/8/2001 | 15 - 24 | 12 | 35 - 45 |
| 10 | 3/4 - 1 1/8 | 19 - 28 | ||
| 12 | 7/8 - 1 1/4 | 22 - 32 | ||
| 16 | 1 1/16 - 1 1/2 | 26 - 38 | ||
| 20 | 1 1/4 - 1 3/4 | 32 - 44 | 45 - 60 | |
| 24 | 1 1/2 - 2 | 38 - 50 | ||
| 28 | 1 1/4 - 2 1/4 | 32 - 57 | ||
| 32 | 1 1/2 - 2 1/2 | 38 - 64 | ||
| 36 | 1 3/4 - 2 3/4 | 44 - 70 | ||
| 40 | 3-Feb | 51 - 76 | ||
| 44 | 2 1/4 - 3 1/4 | 57 - 83 | ||
| 48 | 2 1/2 - 3 1/2 | 64 - 89 | ||
| 52 | 2 3/4 - 3 3/4 | 70 - 95 | ||
| 56 | 4-Mar | 76 - 102 | ||
| 60 | 3 1/4 - 4 1/4 | 83 - 108 | ||
| 64 | 3 1/2 - 4 1/2 | 89 - 114 | ||
| 72 | 3 1/2 - 5 | 89 - 127 | ||
| 80 | 4 - 5 1/2 | 102 - 140 | ||
| 88 | 4 1/2 - 6 | 114 - 152 | ||
| 96 | 5 - 6 1/2 | 127 - 165 | ||
| 104 | 5 1/2 - 7 | 140 - 178 | ||
| 112 | 6 - 7 1/2 | 152 - 191 | ||
| 120 | 6 1/2 - 8 | 165 - 203 | ||
| 128 | 7 - 8 1/2 | 178 - 216 | ||
| 138 | 7 5/8 - 9 1/8 | 194 - 232 | ||
| 154 | 8 5/8 - 10 1/8 | 219 - 257 | ||
| 170 | 9 5/8 - 11 1/8 | 244 - 283 | ||
| 186 | 10 5/8 - 12 1/8 | 270 - 308 | ||
