LENCO MARINE INC.
LENCO MARINE 9" X 9" Standard Mount Trim Tab Kit
SKU: 7112794

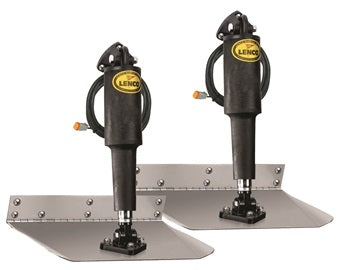

LENCO 9" X 9" Standard Mount Trim Tab Kit
Model# 15000-101
The series that started the electric revolution! Our original Trim Tab design and still the most popular series we build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser-cut 304 stainless steel with a 5/8†(1.6 cm) flared trailing edge & 1/8†(3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
- L" X W": 9" X 9"
- Boat Length: 14' - 18'
- Hinge Height: 2" (5.1 cm)
- Min Transom Height: 14†(35.6 cm)
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
- 12-Volt
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to http://www.P65Warnings.ca.gov.
