LENCO MARINE INC.

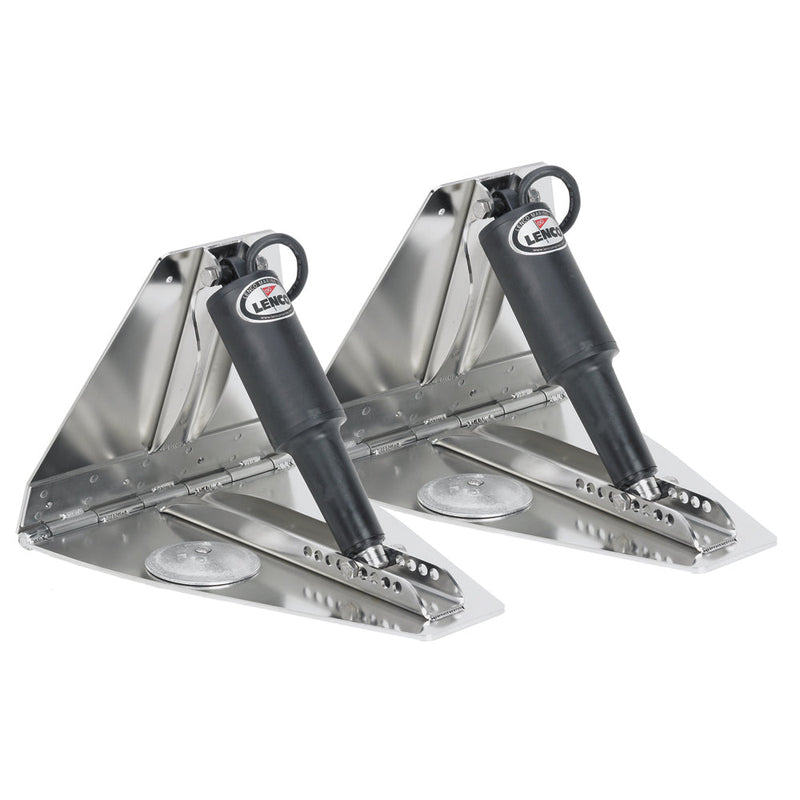

LENCO MARINE 18" x 12" High Performance Trim Tab Kit w/o Switch Kit-12V - Single Actuator
SKU: 7113010
LENCO MARINE 18" x 12" High Performance Trim Tab Kit w/o Switch Kit-12V - Single Actuator
Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.
Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
Kit Contents:
- 2 each of stainless steel trim tab planes
- 2 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
- Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
The following to be supplied by customer:
- Boat mounting hardware supplied by customer
- Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
- required. To order the lengths of your choice see the Lenco Accessories Section.
Specifications:
- Suggested Boat Length: 20' to 40'
- Length of Tab: 18"
- Width of Tab: 12"
- Minimum Transom Height: 10.5"
- Blades: 7 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Switch Required: 10222-211D, 15069-001, or 15070-001Â
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
