RACOR
RACOR Replacement Element - Fuel/Water Filter
SKU: 4520130
RACOR Replacement Element - Fuel/Water Filter
Racor has been a leading force in removing harmful debris and water from gasoline for almost 50 years. These replacement elements were designed to provide added protection to Evinrude, Johnson, and OMC engines. Designed to work with OEM fuel filter mount heads, these advanced elements feature Aquabloc® filter media and remove virtually all water from fuel. The deep pleats in the filter material help to remove particulate contamination and repel moisture channeling to into the bowl where a drain plug allows easy, safe removal.
Spin-on Series Marine Replacement Cartridge Filter Elements are compatible with Racor’s line of Marine Spin-on Series fuel filter / water separator assemblies. The elements exhibit exceptional removal efficiency of both bulk and emulsified water, low restriction of fuel flow, and high dirt-holding capacity. Their unique design makes them capable of performing in modern marine diesel and gasoline applications, where harsh conditions can cause tiny particles of dirt and water to score and erode precision components, leading to engine damage and increased downtime.
The filter body is protected with a durable electrostatically-applied powder coating for superior corrosion resistance. The spin-on filter design is simple to service and features a reusable clear engineering plastic or metal contaminant collection bowl with a self-venting drain for draining out collected contaminants and water.
All Spin-on Series marine replacement cartridge filter elements utilize Racor’s high-efficiency Aquabloc® engineered media. Aquabloc® is a blend of high-grade cellulose compounded with resins and a special chemical treatment. It incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the fuel filter’s collection bowl.
Aquabloc® elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. To meet the unique requirements of customers’ engines, three different micron rating cartridges are available for purchase, including:
30 micron (98%@30 micron) – Ideally suited as a pre-filter to protect downstream filters from excessive contamination. Extends the life of on-engine filters.
10 micron (98%@10 micron) - Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.
“2” micron (98%@4 microns) – Provides maximum water removal and filtration and is capable of protecting all modern injection systems, while greatly extending the life of difficult-to-service on-engine filters.
Notes on use:
Fuel filter element replacement part numbers are specifically designed for their particular series assembly and fuel type. Although different series replacement elements may look externally similar, they may have different internal structures. Do not attempt to use one series replacement element on another series type.
Features:
- Marine Fuel Filter Element: Replacement for Boat Motor for Outboard Engine.
- Quality materials：3 layers of filter paper, made of synthetic fiber, 10 micron filter, filter impurities in the fuel, the efficiency is over 92%, protect the fuel pump nozzle, cylinder liner, piston ring, greatly reduce wear and reduce fuel consumption.
- Anti-Oxidation: The replacement fuel filter element is made of iron, which is anti-oxidative, durable and highly reliable, have a Long service life.
- Various sizes, flow rates, and micron ratings (98% efficiency at 4, 10 or 30 micron) available to meet the unique requirements of customers’ filter systems.
- Printing on cans is color-coded for easy identification and application – red lettering for 30 micron primary filtration, blue lettering for 10 micron primary or secondary, and brown lettering for 2 micron secondary/final filtration.
- Gasoline elements meet ABYC standard for gasoline-powered vessels.
- UL-approved filters meet ABYC, ASTM, ISO, and many other global standards for filters used in marine engine rooms.
- Corrosion-resistant construction
- Aquabloc® media offers high dirt-holding capacity and long service life.
Specifications:

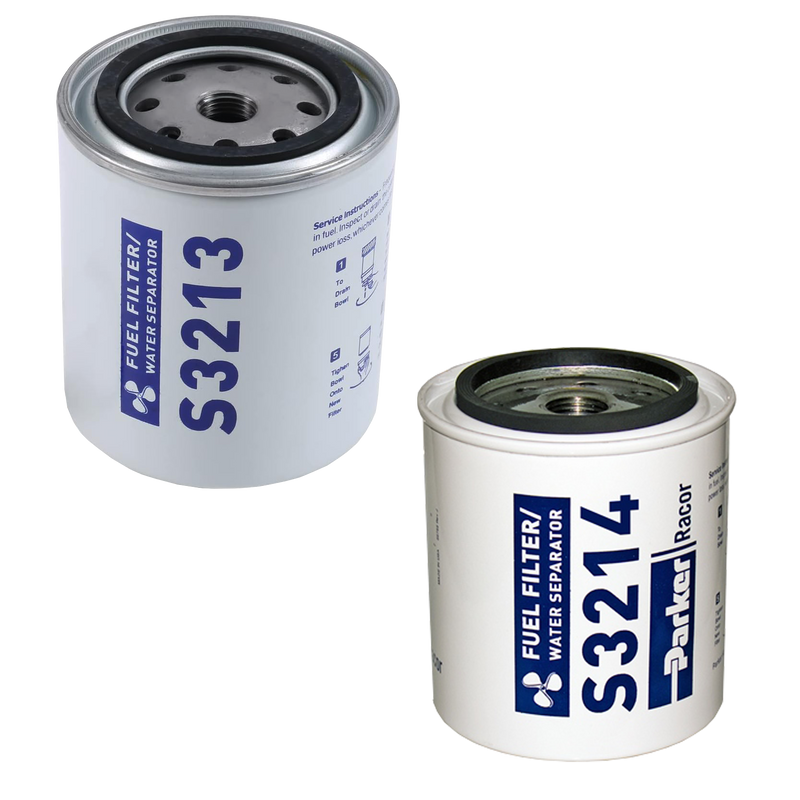

S3213 Fuel Filter Element Replaces OEM: 35-60494-1, S3213, B32013, 18-7932-1, 18-7932, 18-7928-1, 18-7928, 35-809097, MAR-24563-03-00, 18-7919, 18-7919-1, 18-7922-1, 18-7922, 18-7853-1.
S3214 Fuel Filter Element Replaces OEM: B32014
